Tatham BLOW FILLING PRODUCTION LINE FOR PILLOW / CUSHIONS
Tatham BLOW FILLING PRODUCTION LINE FOR PILLOW / CUSHIONS
New Tatham Blowfill fibre opening and filling line
Hopper 900mm width
Card Opener for fibre 900mm width
Twin pneumatic pillow filling positions
Production 250Kg per hour
Equipment scope:
Feeding section
Fibre opening section
Filling station with two nozzles

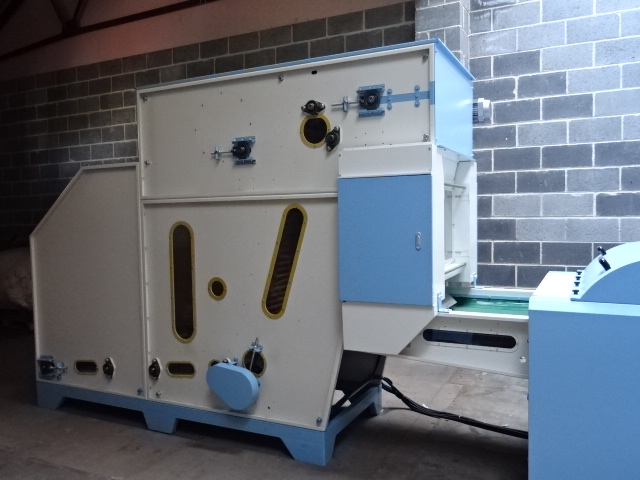

Feeding section
Hopper feeder to process bale into opener
Nominal width 900mm
Dimensions 3200 x 1300 x 2350mm

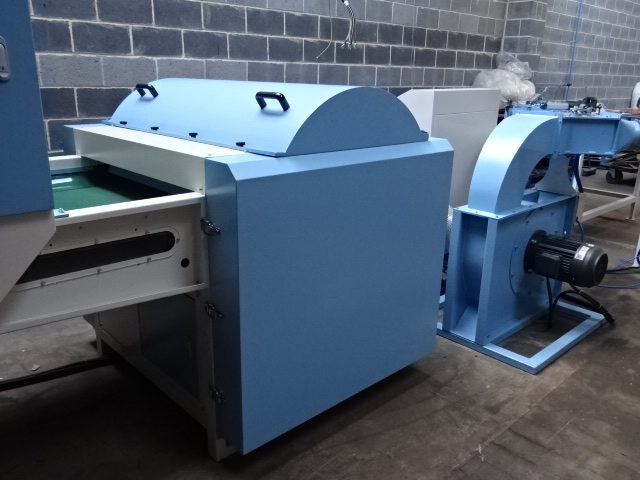

Opening section
To open the fibres (reduce tuft size) so suitable for filling
Nominal width 910mm
Swift 500mm dia
Capacity 300Kg/hour
Fibre requirements 3-5D, <61mm
Dimensions 2000 x 1350 x 1150mm

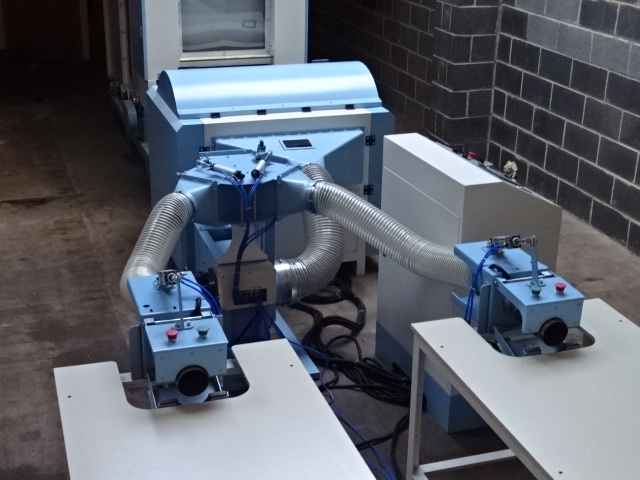

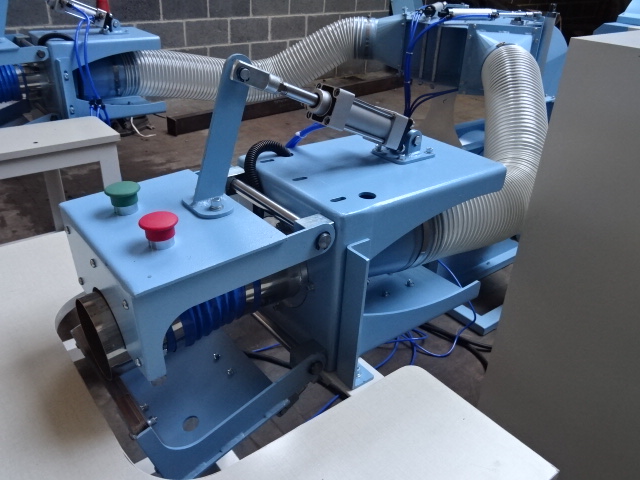

Filling section
Two simple filling stations
Overall Dimensions – 7500 x 3500 x 2300
Type - Pillow/Cushion Filling - more
Manufacturer - Tatham - more
